This app provides flat patterns for various shapes commonly used in fabrication, significantly reducing fabrication time and improving accuracy. It's a valuable tool for creating fabrication layouts.
The app includes flat pattern options for:

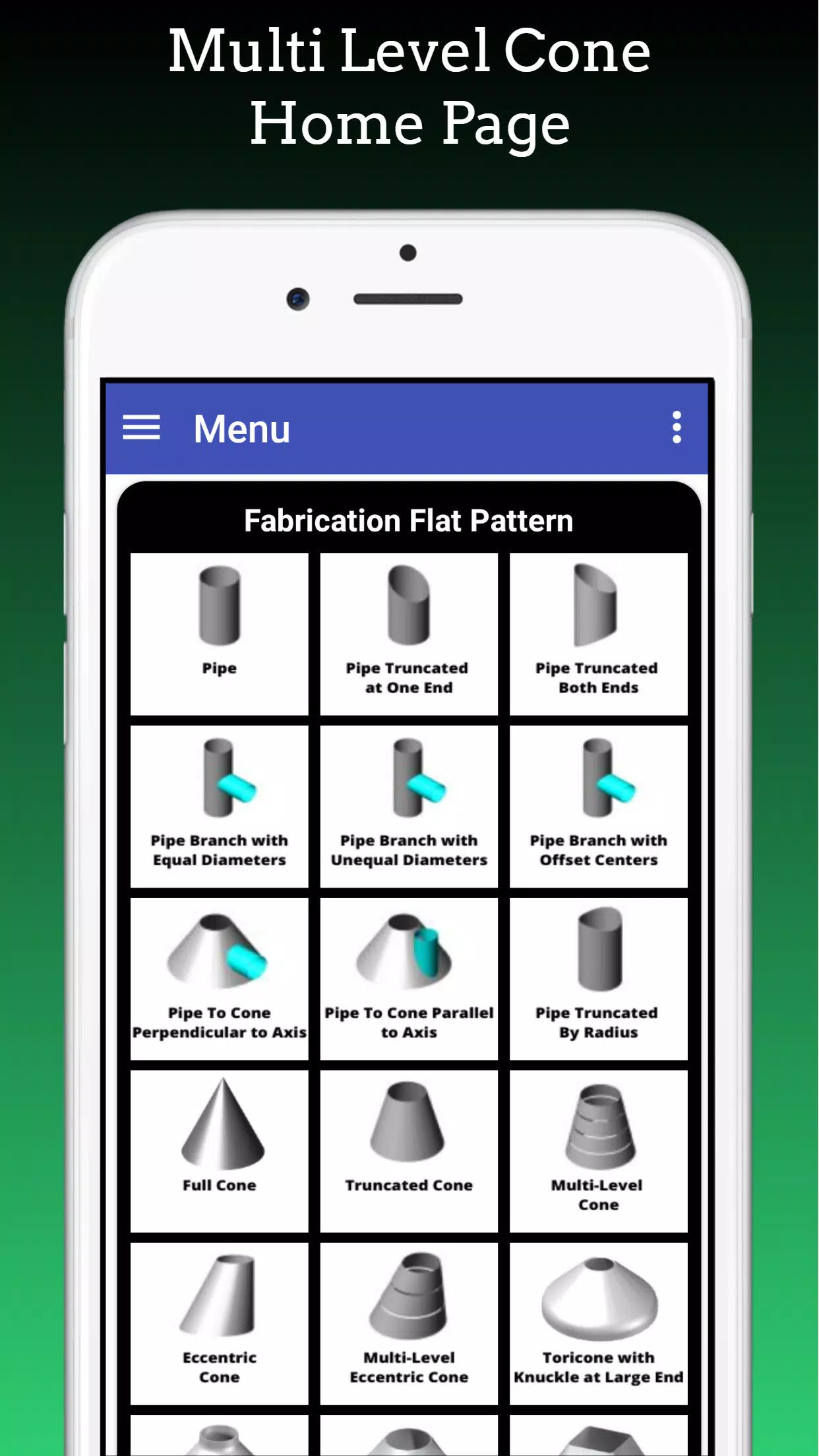

- Pipe Layouts: Including straight pipe, truncated pipe (single and double angle cuts), and various pipe-to-pipe intersections (equal, unequal, and offset diameters).

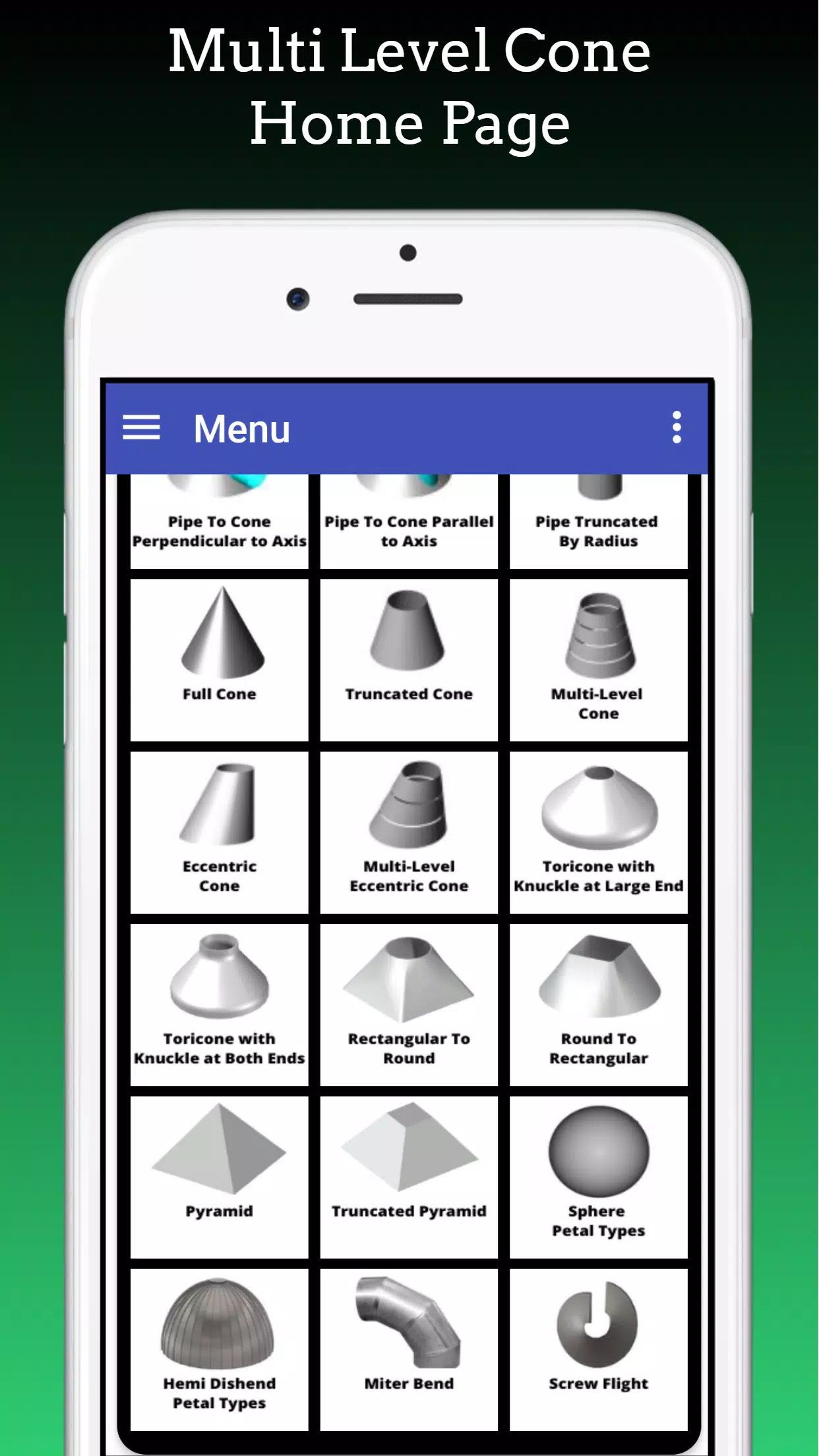

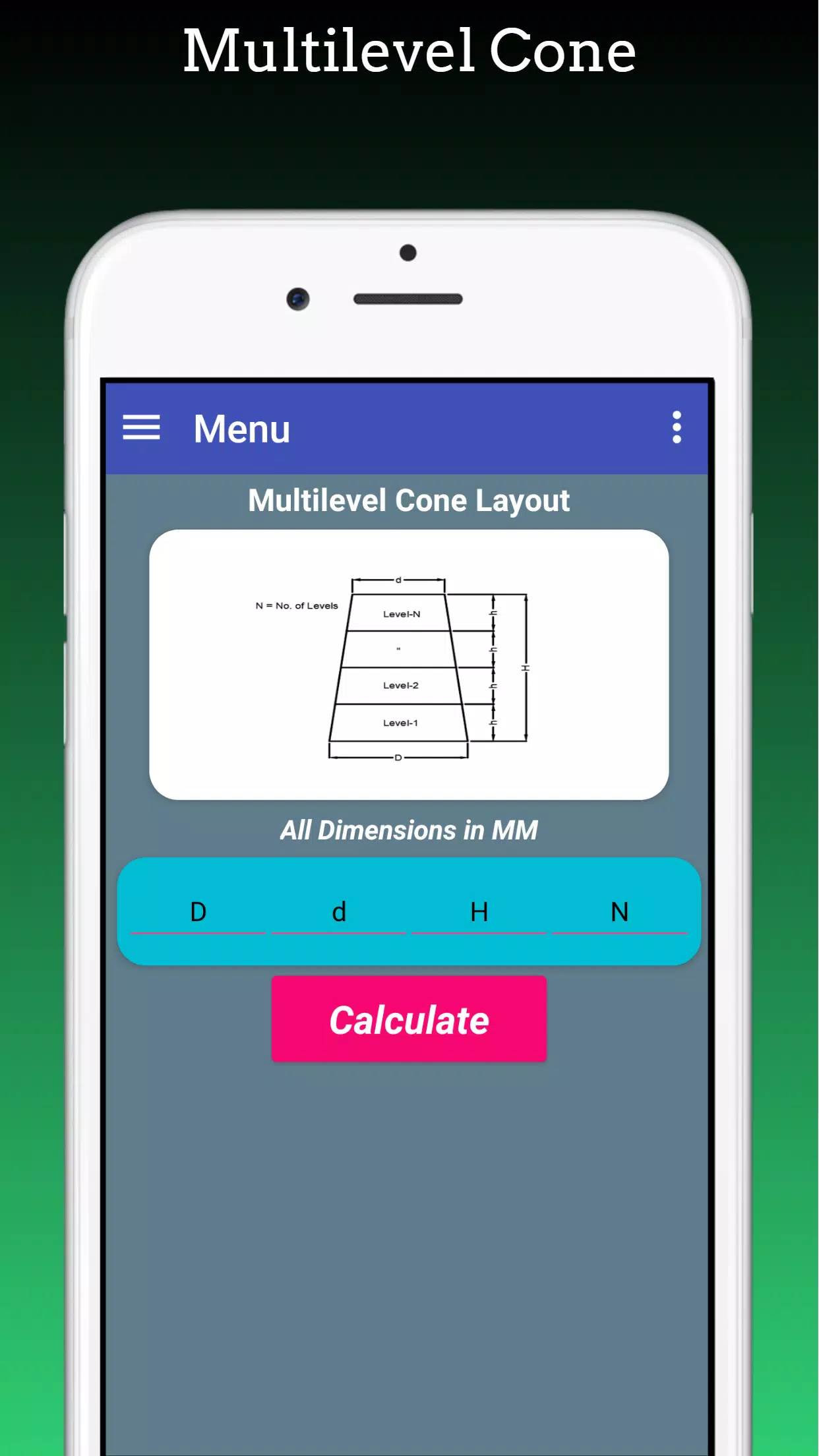

- Cone Layouts: Full cone, truncated cone, multi-level cone, and eccentric cone layouts. Toricones with knuckle radii (at one or both ends) are also supported.
- Transitions: Square-to-round, round-to-square, rectangular-to-round, and round-to-rectangular transitions.
- Other Shapes: Pyramids (truncated and full), sphere petals, dish end petals, miter bends, and screw flights.
This application is beneficial for professionals in pressure vessel fabrication, process equipment fabrication, welding, piping, insulation, ducting, heavy equipment fabrication, storage tank construction, agitator manufacturing, mechanical equipment fabrication, structural fabrication, industrial fabrication, and heat exchanger manufacturing.
Ideal users include production engineers, fabrication engineers, planning engineers, costing and estimating engineers, project engineers, fabrication contractors, fabrication supervisors, fabrication fitters, and fabrication workers.
